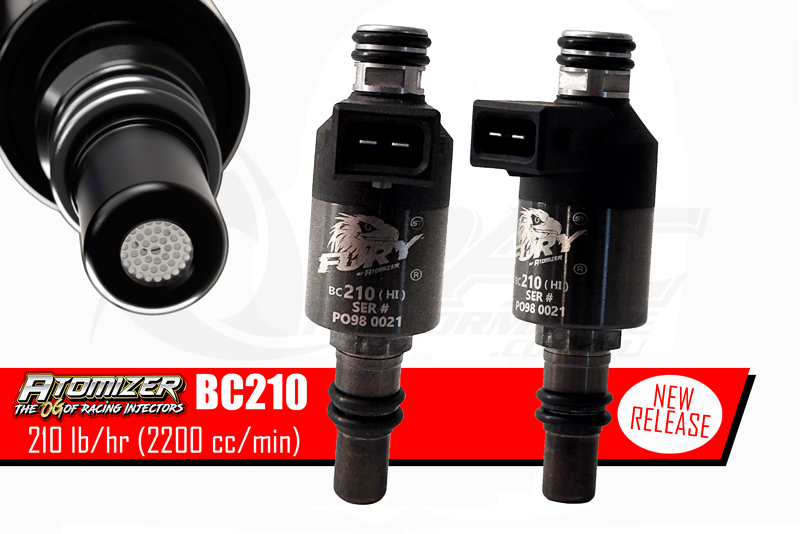

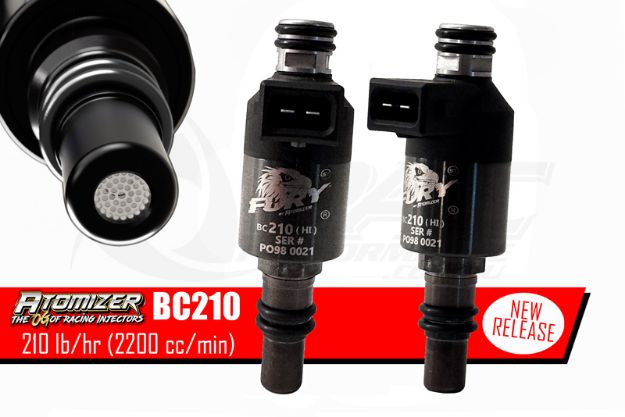

An exciting new addition to the extensive Atomizer range, the new BC210 High Impedance Fuel Injector was designed to outperform existing 210lb/hr injectors, engineered for racers who demand more from their fuel system!
Made from billet stainless steel and hand-built in the USA, the BC210, like all Atomizer injectors, is durable, fully serviceable, 100% rebuildable and built to last. Compatible with pump gas, race gas, methanol, ethanol, E85, and CNG, Atomizer Flow Technology delivers an ultra-fine spray for crisp idle, fast response, precise fuel metering and efficient combustion, delivering 210 lb/hr (2200 cc/min) at 43.5 PSI (3 bar) fuel pressure.
Perfect for turbo, blower, or N/A high-horsepower combos, the Atomizer BC210 brings control, reliability, and serious fueling to your setup!
*PLEASE NOTE - Atomizer Injectors are built to order, and as a result there may be up to a 3 week turnaround once an order is placed. While we do keep some models in stock, we advise customers to contact us to check availability before ordering. +612 9792 7076 / sales@pacperformance.com.au
Key Features & Benefits
- High Flow Rate: 210 lb/hr (2200 cc/min) at 43.5 PSI, with proportional increases at higher pressures for versatile tuning.
- Fuel Compatibility: Works with gasoline (pump and race), alcohol fuels (methanol, ethanol, E85), and CNG-perfect for drag racing and high-power builds.
- Precision Engineering: Proprietary Atomizer Flow Technology ensures micro-droplet fuel delivery for efficient combustion and smooth idle.
- Durable Construction: Made from billet stainless steel for maximum strength, serviceability, and longevity.
- Plug-and-Play: High-impedance coil design is compatible with most OEM and aftermarket ECUs-no resistor packs needed.
- Hand-Built Quality: Each injector is hand-assembled, internally blueprinted, and flow-matched in a closed-loop environment in the USA.
- Rebuildable: Designed for long-term use and easy servicing, saving you money over
Technical Specs
- Body diameter: 25 mm
- Length (O-ring to O-ring): ~62.5 mm
- Overall length (top to tip, extended): 86.5 mm (5 mm longer tip for improved spray)
- Standard 14 mm fuel rail and runner bore
- Dual 14 mm O-rings (90 durometer proprietary Viton) for superior chemical and temperature resistance
- Bosch EV1 90° connector for optimal fuel rail clearance
- Stainless steel inlet filter basket (requires 10-micron post-pump filter)
