Thursday, 20 June 2019
Since coming to us freshly painted from Queen Street Customs our team have been busy assembling Stevie's RX3 Sedan.
Front to back this car will be brand new with every part new or refurbished.
Under the bonnet will be a #BilletbyPAC 13B Bridgeport engine boosted by Garrett GTX42 Turbocharger and controlled via a MicroTech LT-16c ecu.
Transferring the power to the ground is a C4 3-speed transmission and bullet proof 9 inch diff.
Here is how the build is progressing so far -
First parts to go on our ground up builds are the front suspension and differential to get the car rolling.
As you can see all parts are either brand new or refurbished making this RX3 better than when it rolled off the showroom floor.
Next up is the cooling system where we have installed one of our heavy duty 4 inch intercoolers.
completing the cooling set up for now is our H/duty radiator and oil cooler combo complete with custom alloy fan shroud and 16" ultra HD Thermo fan.
Looking after the braking on this new beast is our RX3 Brake booster & Dual reservoir 1" Bore Brake master combo paired with our remote type brake master cylinder reservoir to keep the turbo heat from boiling the brake fluid.
On the front and rear are a set of 4 piston/ 12" Wilwood brakes making sure this car will stop on a dime.
A built 9 inch diff with all of the fruit has been mounted with this beast ready to roll.

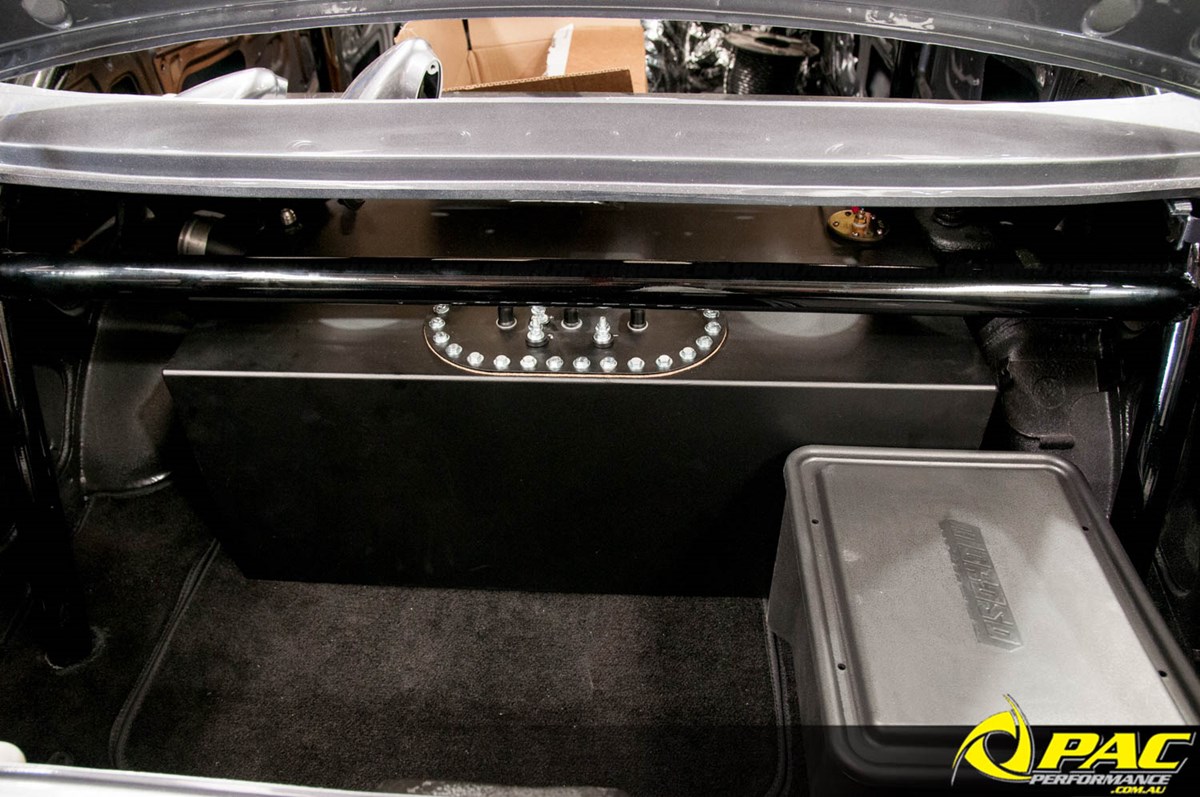

Supplying the soon to be installed 13B bridgeport with a constant supply of E85 is this 90L Fuel tank with triple in-tank pumps.
The customer has opted for a 12a spec car so Savanna rear tail lights have been installed.
Custom silver pearl laid down by the team at Queen Street Customs, so shiny!!
Steve's beast now rolls on a set of RC Components Comp series Exile-s wheels with 15 x 8 dual beadlock rears and 15 x 3.5 fronts giving it a tough street/ race look.
Stay tuned as we continue to piece this 2019 spec Pac Mazda RX3 together. #BuiltPACtough 💪
