'JET09S' RX3 SEDAN



Make/Model: Mazda RX3 Sedan

Owner:
Ali Randa

Car's purpose (race car, street car, show car etc):
 Street/Race

Engine: Pac-Spec Series 8 13B Bridgeport Turbo

Bolt-Ons: Garrett GTX42 Turbocharger, Turbosmart Pro Gate Lite 50 wastegateTurbosmart Plumb Back BOV

ECU and Fuel: MicroTech LT-16c ECUHigh Output Coils,Pac Perf direct fit E85 fuel tank/triple pump combo

Driveline: C4 3-speed Auto, 3 inch tailshaft, H/duty 9 inch diff

Cooling: Pac alloy radiator, oil cooler & 4" Intercooler

Brakes & Suspension: Wilwood front & rear disc brake kit

Body: Savanna tail lights, 12A nose cone

Interior: Genuine Recaro Sportster CS front seats, removable front half roll cage, MoTeC C127 DashTurbosmart E-Boost II, B & M shifter

Wheels: 18" FR Simmons for the street and RC Components Exile race wheels, 15 x 4.5 fronts and 15 x 8 Double beadlock rears

Tyres: Mickey Thompson 225/50/15 Street radials

Power: 600+ rwhp

ET: 8.95 @149



When Ali first drove his car into the workshop it was running a naturally aspirated 13B Bridgeport which was a good little street cruiser but Ali was keen for some boost so after a chat with George the arrangements were made for a proven 9 second PACkage to be installed.





 With the paint and panel already done it was just a matter of removing the old setup ready for all new parts. The team wasted no time in stripping the engine bay down with our tried and tested radiator & oil cooler package the first parts to be installed. Paired with our custom alloy fan shroud and 16 inch Ultra HD slimline thermo fan operating temperatures stay cool even on the hottest days.



Next up the Bridgeported series 8 13b engine was installed ready for the Garrett Turbo and bolt on accessories to be fitted.



Providing the boost on Ali's new beast is a Garrett GTX42R Turbocharger, a favourite amoungst our customer base.

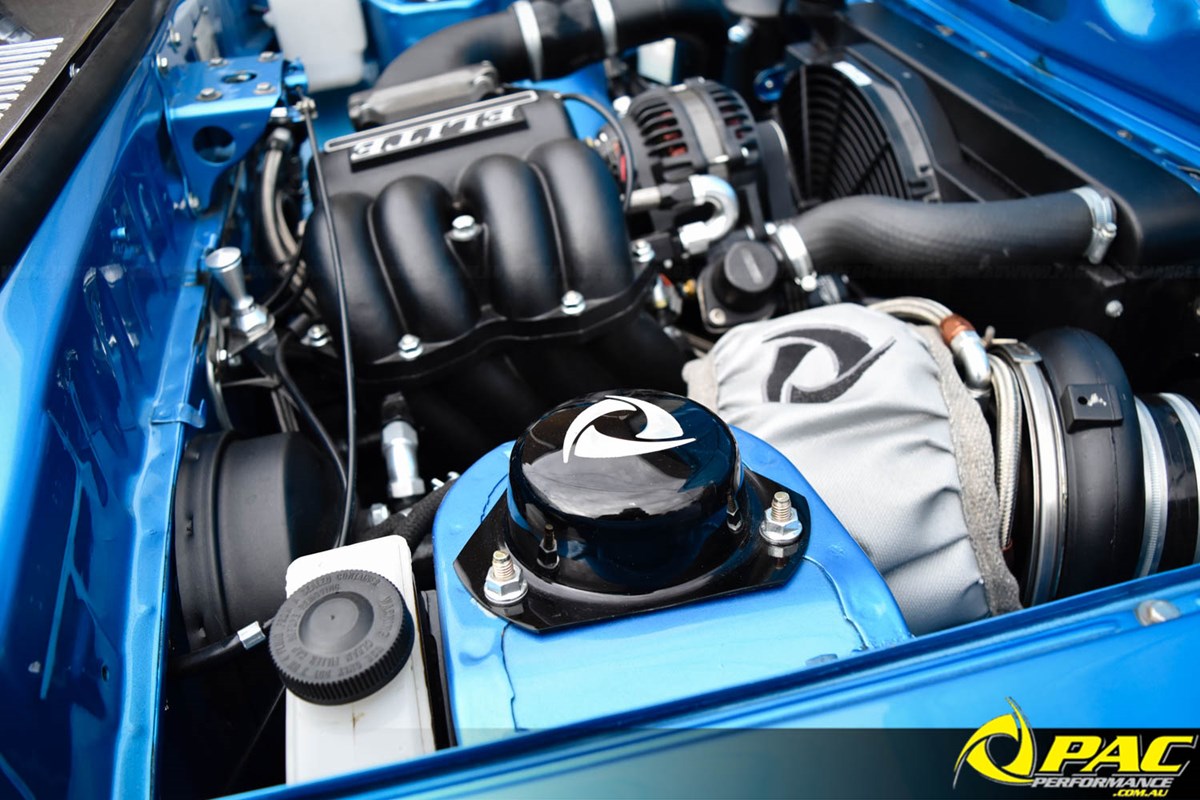

The completed engine bay with it's painted or powder coated black accents compliment the metallic blue paint giving it a tough but visually appealing look.



With the engine now mounted our fabricator installed a roll cage with a removable front half ready for racing duties. An IHRA requirement for cars running faster than 10.00 seconds and this car is built to go much quicker than that.



After the roll cage was completed the original interior was fitted back into the car with the addition of a pair of Recaro Sportster CS front seats. Not only are these seats more comfortable than the standard seats they provide much needed support when racing.





A MicroTech LT-16c ecu looks after the engine management feeding information to the MoTeC C127 Race Display Dash





Shifting the gears through the B & M shifter is a C4 3-speed auto built by Al's Race Glides





Supplying the 13b with much needed E85 is one of our Fuel tanks with triple in-tank pumps. With a massive 90L capacity Ali won't be stopping to fill up too often (No tiny fuel cells here)



Ali's sedan now rolls on a set of 18" FR Simmons on the street





and RC Components Exile race wheels at the track.



Not long after picking up his rebuilt car from us Ali was out at Sydney Dragway racing running a mid 9 second pass on his first time at the track.





On his next outing to the drag strip Ali pb'd with a 9.3 at 146mph gradually getting quicker throughout the day until he ran his first 8 second pass of 8.95 @149. Running only a small 225 tyre, Ali became the first to run into the 8's and is still currently the quickest rotary street car on a 225 radial.



Check out the 8 second run here in our highlight video
